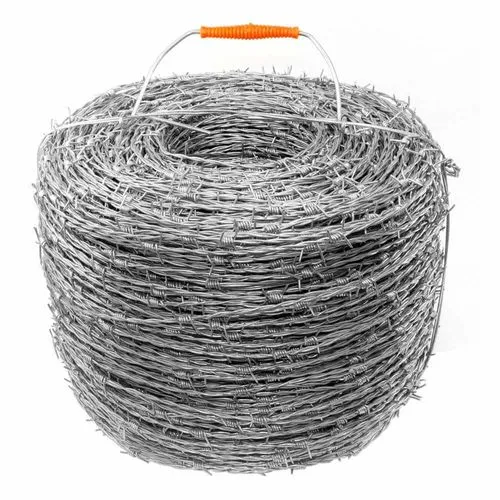

What is Galvanized Barbed Wire?
Hot Dipped Galvanized Barbed Wire is a double-strand steel wire twisted with sharp barbs, designed for security fencing, boundary marking, and anti-intrusion protection. GABION-S produces barbed wire using high-purity low-carbon steel and applies hot-dip galvanizing, providing outstanding corrosion resistance even in marine, desert, and high-humidity environments.
Manufacturing Process
Our galvanized barbed wire is manufactured through a controlled process:
- Wire drawing – low-carbon steel wire is drawn to target diameter.
- Hot-dip galvanizing – thick zinc coating ensures long-term outdoor durability.
- Double-strand twisting – two wires twisted to improve tensile performance.
- Barb formation – 2-point or 4-point barbs fixed at equal intervals.
- Roll forming & inspection – each roll is measured, weighed, and tested.
Product Types
Economical option for agricultural and rural fencing.
Suitable for farms, gardens, small enclosures.
Higher tensile strength; widely used for industrial security.
For long-span fencing and harsh environments.
Reduced sagging and longer service life.
Additional polymer coating for enhanced chemical resistance.
Available in green, black, blue.
Technical Specifications
| Section | Parameter | Specification / Range | Notes |
|---|---|---|---|
| Wire Diameter | Line Wire – Standard Type | 1.6–2.8 mm | Suitable for general fencing |
| Barb Wire – Standard Type | 1.6–2.2 mm | Standard point spacing | |
| Line Wire – High-Tensile Type | 1.8–2.5 mm | For high-security fencing, higher tension | |
| Barb Wire – High-Tensile Type | 1.8–2.2 mm | Improved durability & anti-climb | |
| Barb Specifications | Barb Length | 13–25 mm | Can be adjusted per client requirement |
| Barb Spacing | 3″ / 4″ / 5″ / Customized | Installation flexibility | |
| Barb Type | 2-point / 4-point | 4-point provides higher deterrence | |
| Zinc Coating Thickness | Class A | ≥ 80 g/m² | Standard corrosion protection |
| Class B | ≥ 120 g/m² | Suitable for humid/rainy regions | |
| Heavy Galvanizing | ≥ 200 g/m² | Ideal for marine/coastal or long-term outdoor use | |
| Tensile Strength | Soft Wire | 380–550 MPa | Easy to handle & install |
| High-Tensile Wire | 900–1200 MPa | Maintains shape under high stress | |
| Coil Length | Standard Coils | 200 m / 250 m / 500 m | Ready for modular installation |
| OEM / Custom | Customizable | Can produce according to project requirement |
Key Features
Strong Corrosion Resistance
Hot-dip zinc layer protects against rust, moisture, acid rain, and marine environments.
High Tensile Strength
Double-strand structure ensures stable and rigid fencing.
Sharp & Uniform Barbs
Mechanically stamped barbs deliver consistent spacing and anti-climb performance.
Long Service Life
Service life of 15–25 years depending on zinc class and environmental conditions.
Easy Installation
Compatible with wooden posts, steel posts, concrete fences, and gabion structures.
Applications
Hot Dipped Galvanized Barbed Wire is widely used in:
| Category | Application Items |
|---|---|
| Security & Defense | • Industrial perimeter fencing • Warehouses & logistics centers • Military zones • Power stations & substations |
| Agriculture & Farming | • Livestock fencing • Ranch perimeter protection • Farmland boundary marking |
| Infrastructure & Construction | • Highway fencing • Railway barriers • Airport protection • Bridges & retaining systems |
| Combined with Gabions (GABION-S Products) | • Gabion retaining walls • Slope protection systems • Riverbank reinforcement |
Quality Standards & Testing
Our Galvanized barbed wire is tested according to:
- ASTM A641 – Zinc Coating
- EN 10223-1 – Steel Wire Fencing Products
- ISO 6892-1 – Tensile Testing
- Salt Spray Test (≥ 72 hours) for corrosion performance
Each coil undergoes:
- Tensile strength test
- Zinc coating weight check
- Barb spacing inspection
- Coil length measurement
Why Choose GABION-S?
- Over 10 years of fencing and gabion manufacturing experience
- Advanced hot-dip galvanizing lines
- Custom diameters, barb interval, coil size available
- Global export experience to EU, Middle East, SEA, and Africa
- Rapid delivery from multiple warehouses
