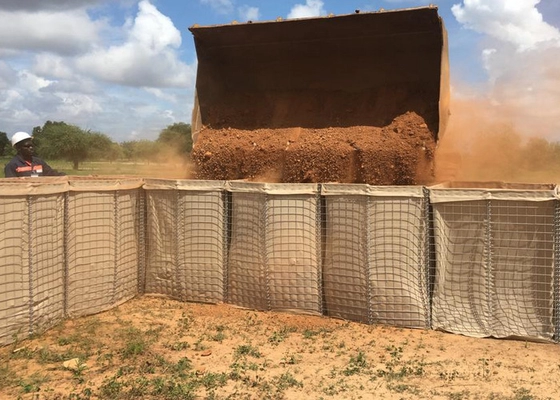

The defense barriers is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh gabion and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries.
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
- 1. Wire diameter: 4-5mm
- 2. Mesh size: 3×3 inches (7.62*7.62 cm)
- 3. Panel Size: 13 species
- 4. Application: used for Department of Defense,Military Barriers,River Pretection
- 5. Geotextiles: 300 g/m2,color: gray, military green, sand, etc
- 6. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
- 7. Packaging: Packaging by Pallet and plastic film
Details of Military Defensive HESCO Barriers:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
