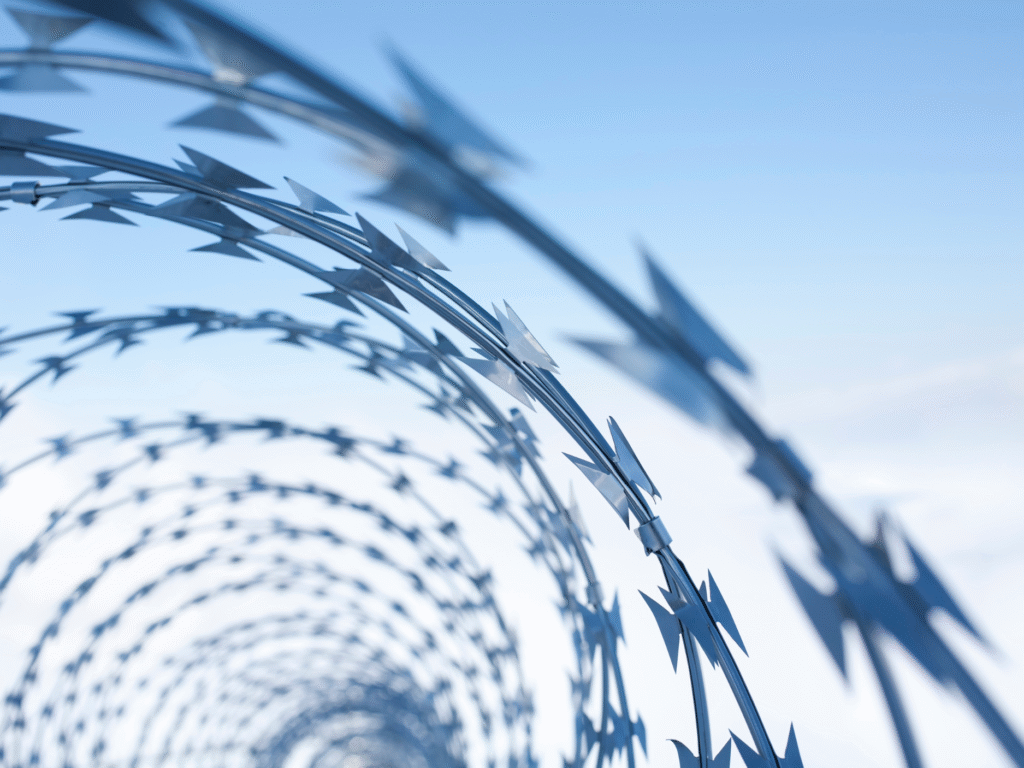

What is Razor Wire?
GABION-S™ Razor Wire is a high-security fencing product engineered for maximum perimeter protection. Manufactured with sharp-edged galvanized or stainless-steel blades and reinforced with high-tensile core wire, our razor wire provides strong physical deterrence, long-term durability, and fast installation. It is widely used in military bases, border control, airports, prisons, industrial facilities, and private properties requiring enhanced security.
Product Features
- Ultra-sharp blades made from hot-dip galvanized or stainless steel for superior cutting resistance.
- High-tensile steel core wire (up to 1200–1500 MPa) to prevent cutting or deformation.
- Multiple configurations available including Concertina Coils, Flat Wrap, Cross Type, and Welded Razor Mesh.
- Corrosion-resistant materials to ensure 10–20+ years of outdoor service life.
- Fast deployment suitable for large-scale projects and long-distance fencing.
Razor Wire Types by GABION-S™
Hot-dip galvanized for strong corrosion resistance and reliable perimeter security.
PVC-coated finish for enhanced durability, weather protection, and cleaner appearance.
Made with stainless steel for superior corrosion resistance and maximum security performance.
The most widely used design, expanding into a three-dimensional barrier. Available in single coil, double coil, and cross-type structures.
A compact and aesthetically friendly option ideal for urban areas, residential fencing, and commercial security enhancements.
Razor wires welded into rigid mesh panels, commonly used for airports, government facilities, and high-security warehouses.
Types of Razor Blade
The blade profiles of razor wire are mainly classified into BTO (Barbed Tape Obstacle) and CBT (Concertina Barbed Tape) series. Among them, the five most widely used types are: BTO-10, BTO-22, BTO-30, CBT-60, and CBT-65 — covering short, medium, long, and special security blade designs.
| Specification | BTO-10 (Short Blade) | BTO-22 (Medium Blade) | BTO-30 (Tear Blade) | CBT-60 (Fish-Hook Blade) | CBT-65 (Long Blade) |
|---|---|---|---|---|---|
| Blade Type | BTO-10 | BTO-22 | BTO-30 | CBT-60 | CBT-65 |
| Barb Thickness | 0.50 ± 0.05 mm | 0.50 ± 0.05 mm | 0.50 ± 0.05 mm | 0.50 ± 0.05 mm | 0.50 ± 0.05 mm |
| Barb Length | 10 ± 1 mm | 22 ± 1 mm | 30 ± 1 mm | 60 ± 2 mm | 65 ± 1 mm |
| Barb Width | 13 ± 1 mm | 16 ± 1 mm | 18 ± 1 mm | 31 ± 1 mm | 51 ± 1 mm |
| Barb Spacing | 25 ± 2 mm | 35 ± 2 mm | 45 ± 2 mm | 100 ± 2 mm | 100 ± 2 mm |
| Core Wire Diameter | 2.5 ± 0.1 mm | 2.5 ± 0.1 mm | 2.5 ± 0.1 mm | 2.5 ± 0.1 mm | 2.5 ± 0.1 mm |
| Security Level | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ | ★★★★★ | ★★★★★ |
| Cost Level | ★ | ★★ | ★★★ | ★★★★ | ★★★★ |
| Typical Applications | Low-cost fencing, basic perimeter | Industrial & commercial fencing | Medium–high security zones | Military, sensitive facilities | Prisons, top-tier security zones |
Specification of Razor Wire
| Coil Diameter (mm) | No. of Loops | Standard Length (m) | Blade Type (ref.) | No. of Clips | Notes |
| 450 | 56 | 8-9 | BTO-12; 18; 22; 30 | 3 | cross type |
| 500 | 56 | 9-10 | BTO-12; 18; 22; 30 | 3 | cross type |
| 600 | 56 | 10-11 | BTO-12; 18; 22; 30 | 3 | cross type |
| 600 | 56 | 8-10 | BTO-12; 18; 22; 30 | 5 | cross type |
| 700 | 56 | 10-12 | BTO-12; 18; 22; 30 | 5 | cross type |
| 800 | 56 | 11-13 | BTO-12; 18; 22; 30 | 5 | cross type |
| 900 | 56 | 12-14 | BTO-12; 18; 22; 30 | 5 | cross type |
| 960 | 56 | 13-15 | BTO-12; 18; 22; 30 | 5 | cross type |
| 980 | 56 | 14-16 | BTO-12; 18; 22; 30 | 5 | cross type |
| 450 | 33 | 7-8 | CBT-60; 65 | N/A | single coil |
| 500 | 56 | 12-13 | CBT-60; 65 | N/A | single coil |
| 700 | 56 | 13-14 | CBT-60; 65 | N/A | single coil |
| 960 | 56 | 14-15 | CBT-60; 65 | N/A | single coil |
Key Advantages
- Maximum security and deterrence with aggressive blade design
- Extended service life thanks to anti-corrosion coatings
- Cost-effective protection with minimal maintenance requirements
- Flexible installation on walls, fences, concrete barriers, and metal posts
- Customizable configurations to match different security levels and project needs
Razor Wire Applications
Military camps & defense zones
Border checkpoints
Residential boundary walls & commercial buildings
Landscape protection & park perimeters
Airports & restricted transportation hubs
Highway and railway isolation barriers
Prisons, detention centers & government facilities
Production & Delivery Process
hen you work with GABION-S™, you receive fast-response wire solutions, stable mass-production capacity, and dependable global delivery. Our workflow is designed for efficiency and transparency, ensuring your orders are completed on time.
Once we receive your requirements, our technical team will respond within 6–12 hours with complete razor wire options, specifications, and solutions.
All product details—such as blade type, coil size, packaging, and material—will be provided clearly and quickly.
Step 1: Specification Confirmation (6–12 Hours)
To ensure accuracy, you can confirm your order through:
- Razor wire samples
- Online video verification of the production process.
This confirmation stage typically takes 1–2 days.
Step 2: Production Plan & Sample Verification (1–2 Days)
Step 3: Mass Production (10–15 Days)
Once your order is confirmed, full-scale production begins immediately.
With our advanced manufacturing lines and stable output capacity, most razor wire orders are completed within 10–15 days.
Step 4: Packing, Loading & Shipping (2–10 Days)
GABION-S™ offers multiple package options, including:
- Coils with handles, Moisture-proof wrapping
- Custom-branded packaging for distributors and wholesalers
Why GABION-S™?
- China’s No.1 Integrated Razor Wire & Security Fencing Supplier
- Over 10 years of manufacturing experience in metal mesh and perimeter protection
- Advanced production lines ensuring consistent quality
- Exporting to 30+ countries with proven project records
- OEM/ODM support and full engineering assistance
- Fast delivery, competitive pricing, and reliable after-sales service
